D-Series CPU/GPU Mount (MU40)
This product is located in and ships from the following location(s): China
Questions & Answers
Have a Question?
Be the first to ask a question about this.
Description

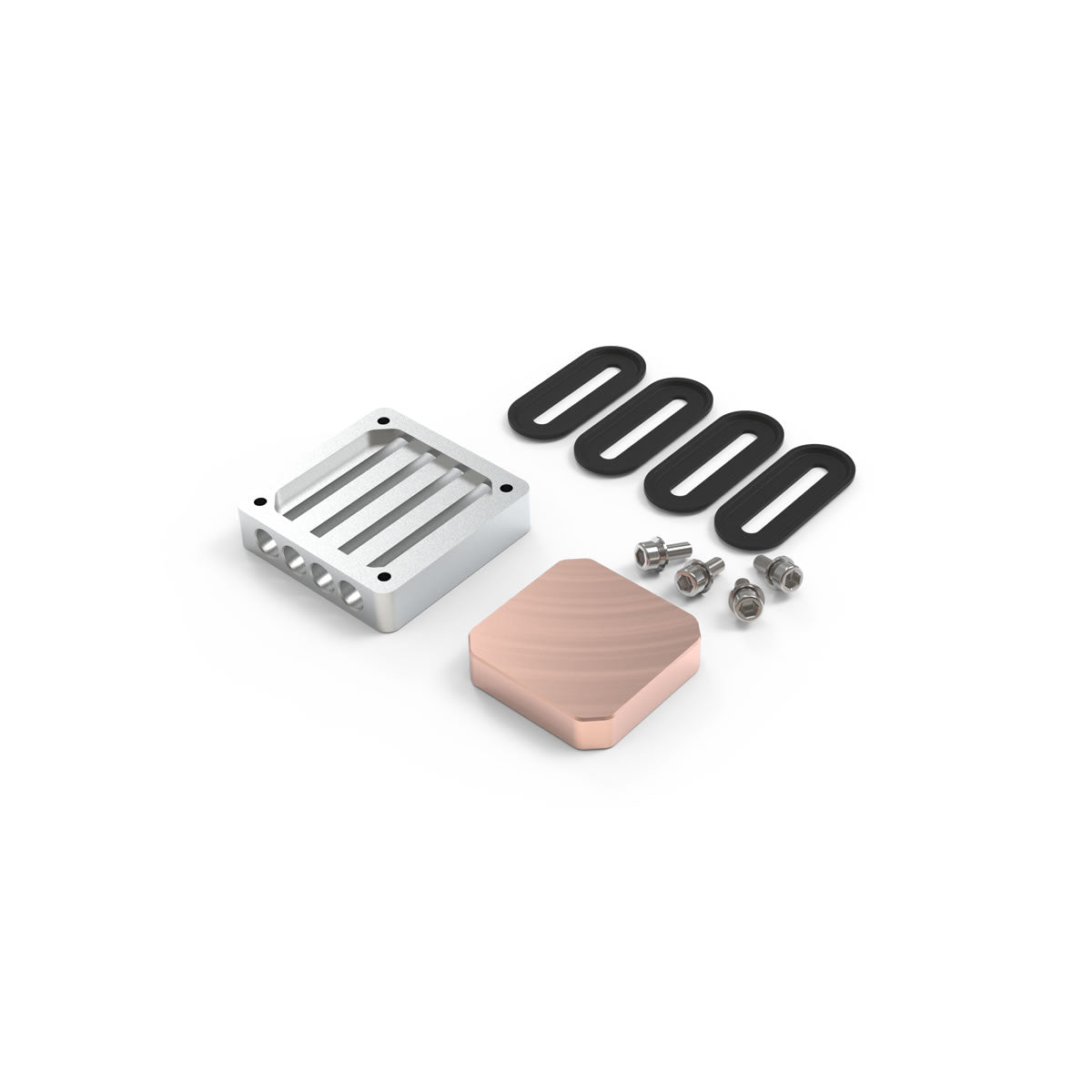

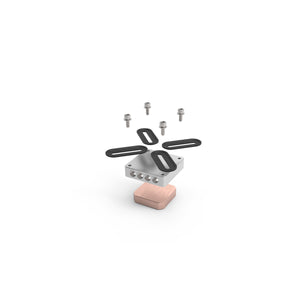

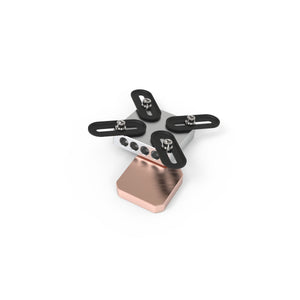

CPU Mount assembly for fanless cases (D series cases), two-part design with copper shim and AL block to support 6 x 6mm heat pipes. Copper Shim height of 8mm for compatibility with embedded (socketless) CPUs

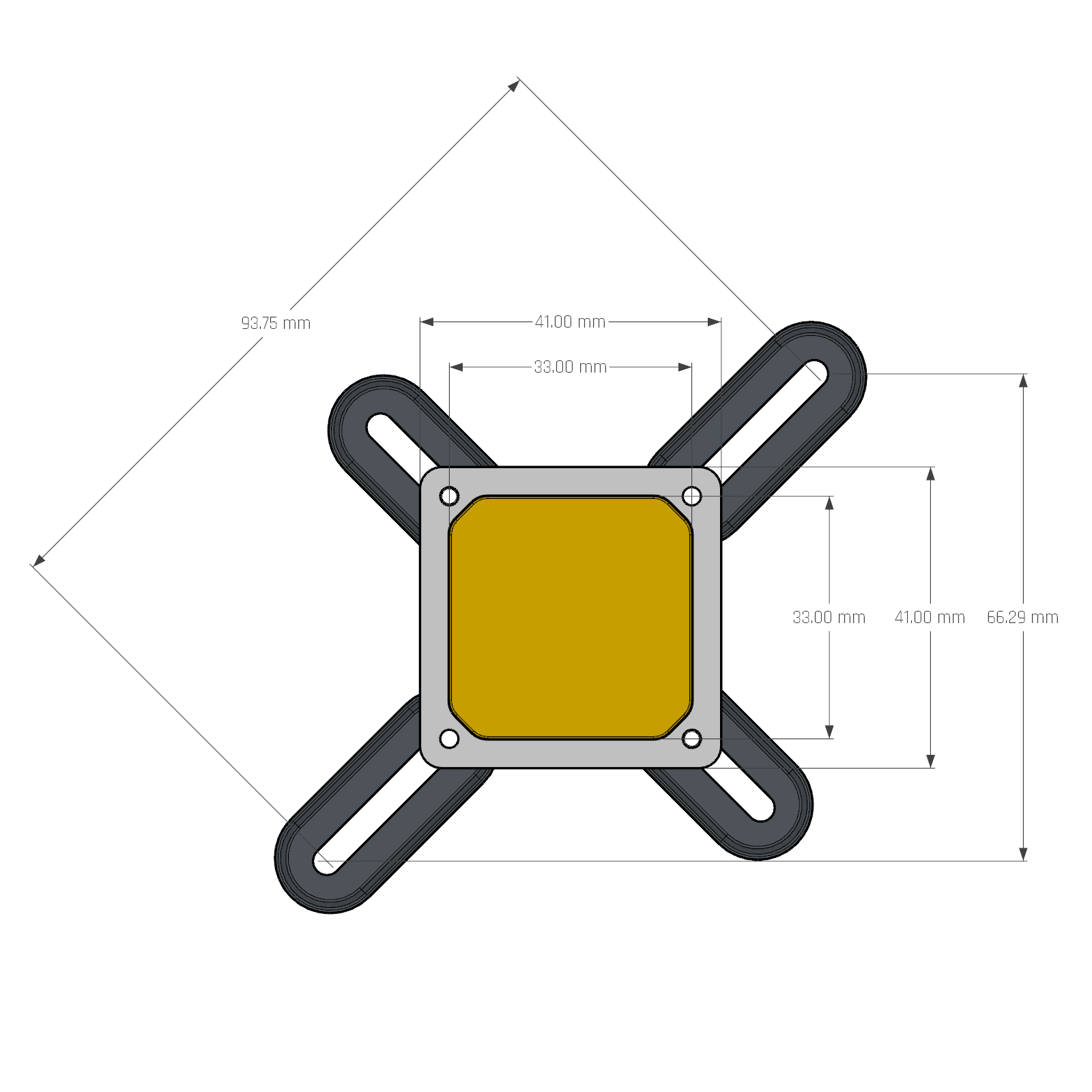

Specification
AL Mount
41x41x10mm
1.6mm recess for copper shim
Copper Shim
33x33x8mm
Maximum Arm Reach
65x65mm square hole to hole
80x33mm rectangular hole to hole
95mm diagonal hole to hole
