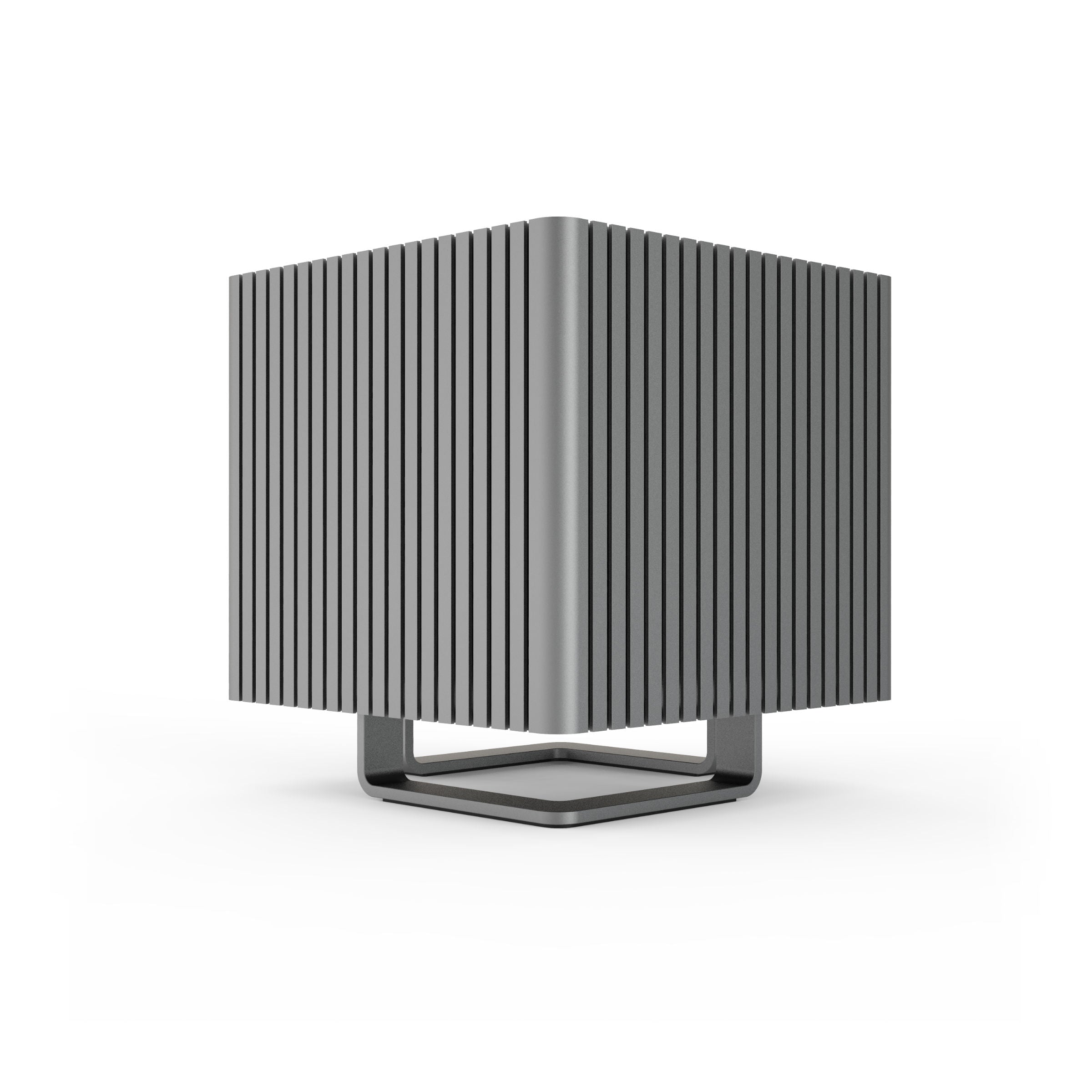

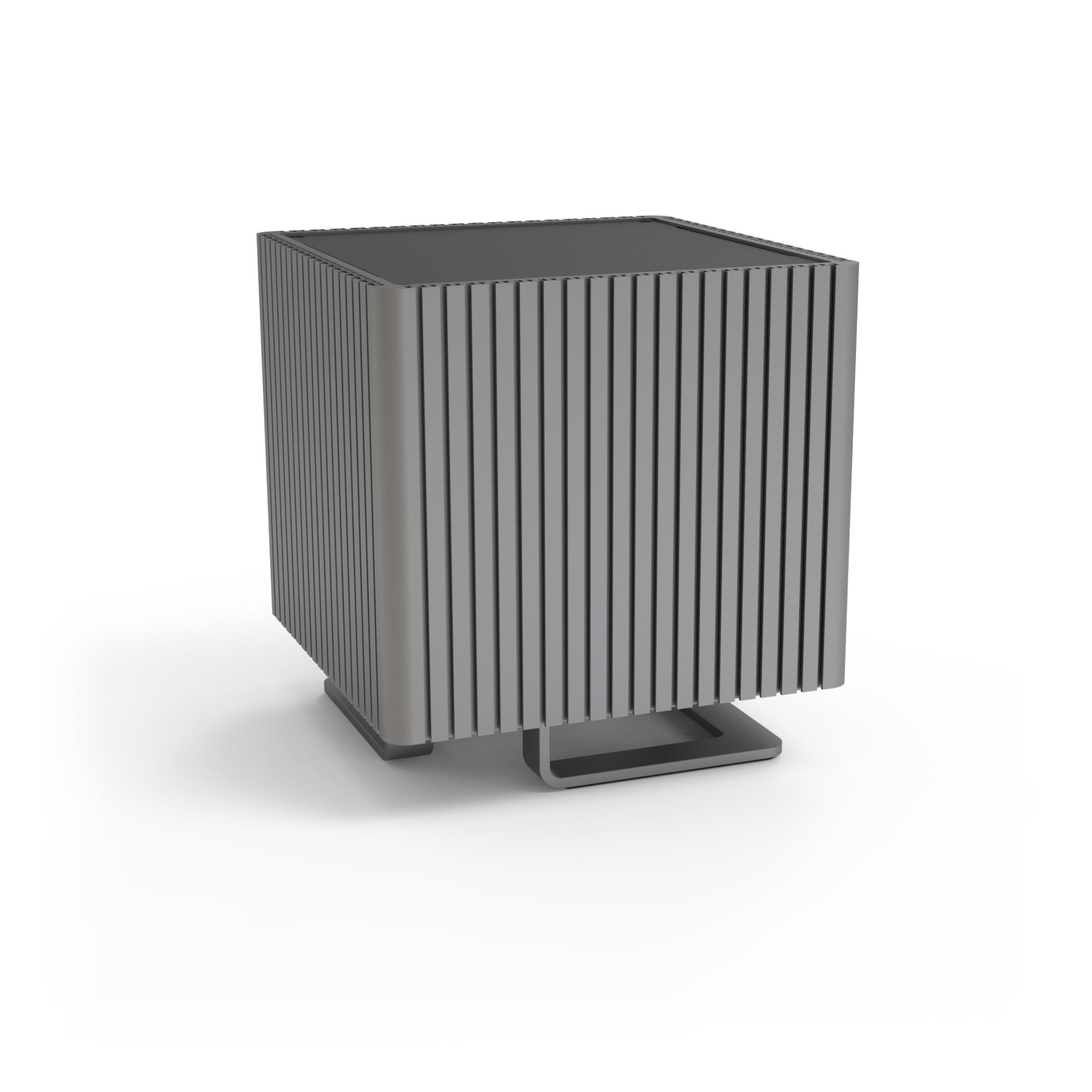

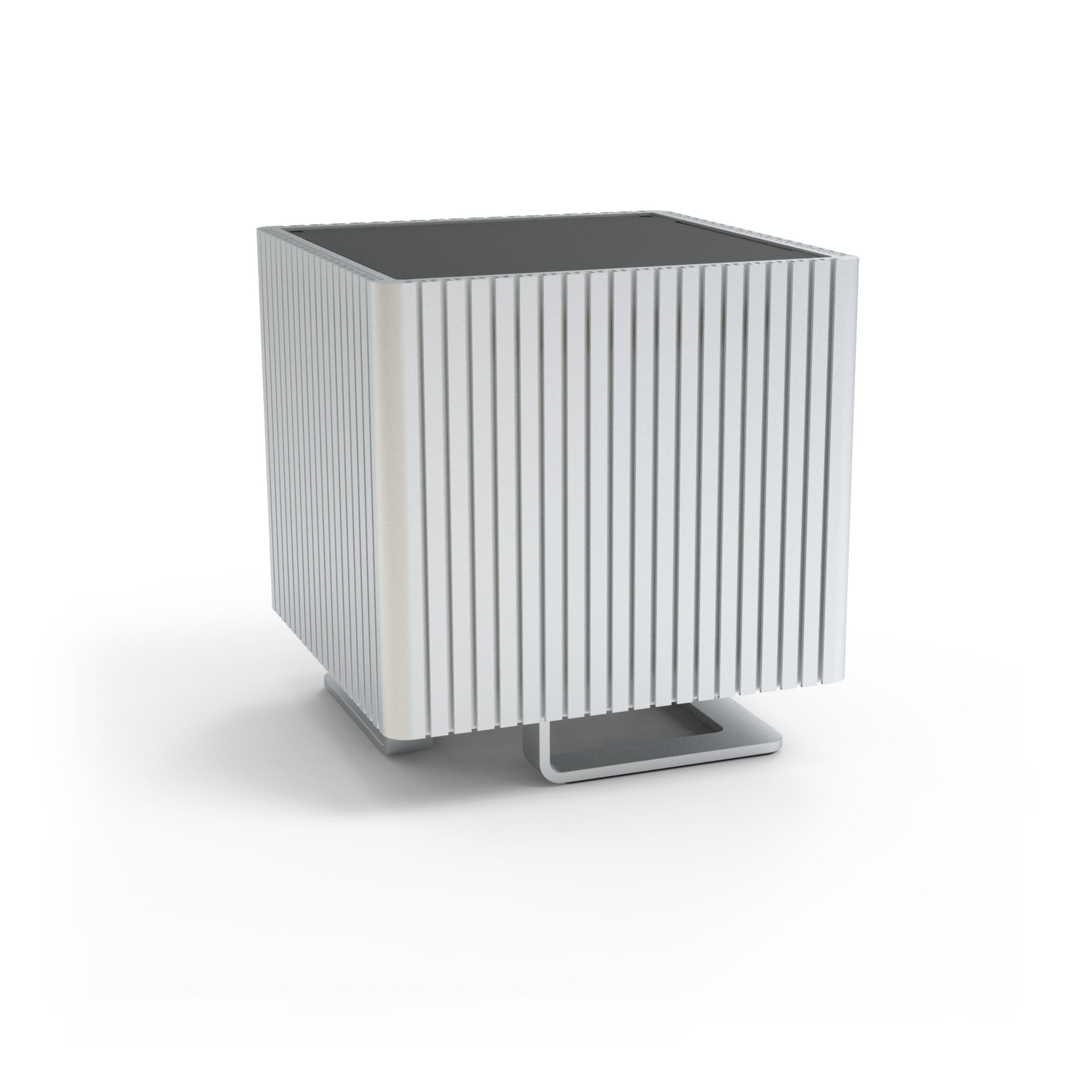

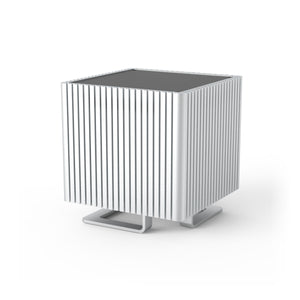

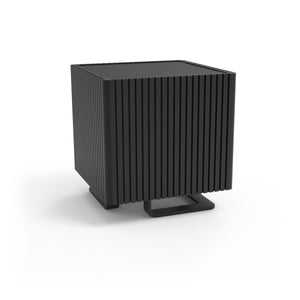

The DB4 is a design masterpiece featuring a bi-symmetrical design that blurs the lines between technology and art. Every element of this case subtly screams premium, from the 13mm thick extruded aluminium side panels to the precision CNC’d internal frame, all perfectly blended together with our characteristically understated design tone.
Key to its design are the identical sides of the case which serve both as the striking monolithic exterior and the convection surface (or heat sink) for component cooling and is the basis of its fanless operation.
Motherboard compatibility has been addressed, the DB4 solves one of the biggest complexities of building a fanless case. With both the motherboard and side panels being parallel, the heat pipes run perpendicular, away from any components and in combination with the flexibility of the universal bracket, means that virtually all ITX motherboard are compatible with the case.
Our existing CPU mount has also been re-engineered to be adjustable and universally compatible with any socket. It now features a copper shim interface between the IHS and heat pipes which creates a more efficient all copper thermal path to the heat sink, greatly improving cooling performance.

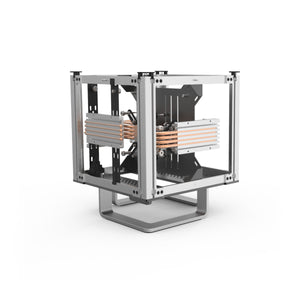

To make assembly easier, all the side panels are removable, as is the motherboard tray, leaving an open frame with plenty of accessibility. Building on the innovation of our F12C, components are fitted using a universal bracket system that supports, drives, heat sink mounts and the ZF240, allowing components to be mounted anywhere along the frame of the case, delivering a truly modular and flexible layout.
The DB4 measures 260 x 260 x 270mm but still manages to accommodate an ITX motherboard, a dual-slot full-height PCI card (max 200mm length, 110mm height), up to 5 x 3.5” or 12 x 2.5” drives (lots of combinations in between), and can be powered by our Nano or ZeroFlex PSU solutions.
